Special ACR bracket: roof, PVC ground, hot rolling / cold-rolled steel types, etc. Or design and produce according to customer´s requirements, drawing or sample. OEM, ODM.

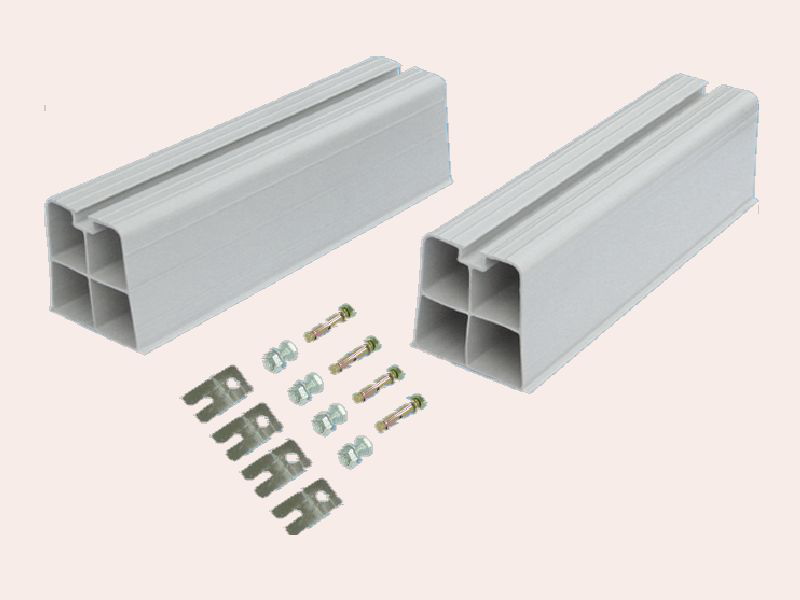

Model: W420-36 / W420-45, ground bracket
Material: PVC (optional accessory: closing cap)
Supplied with fastening screws and anchor bolts, easy and quick installation on any ground.
Special "honeycomb" structure, shock-proof, weather-proof, UV protection
|
Model
|
Size (mm)
|
Max loading
capacity (KG)
|
For ACR
|
PCS / 20’GP
container,
no pallet
|
|
L
|
H
|
W
(top)
|
W
(bottom)
|
|
W420-36
|
360
|
95
|
80
|
103
|
80 + 80
|
7000-18000BTU (1-2HP)
|
3630
|
|
W420-45
|
450
|
95
|
80
|
103
|
110 + 110
|
18000-24000BTU (2-3HP)
|
2800
|

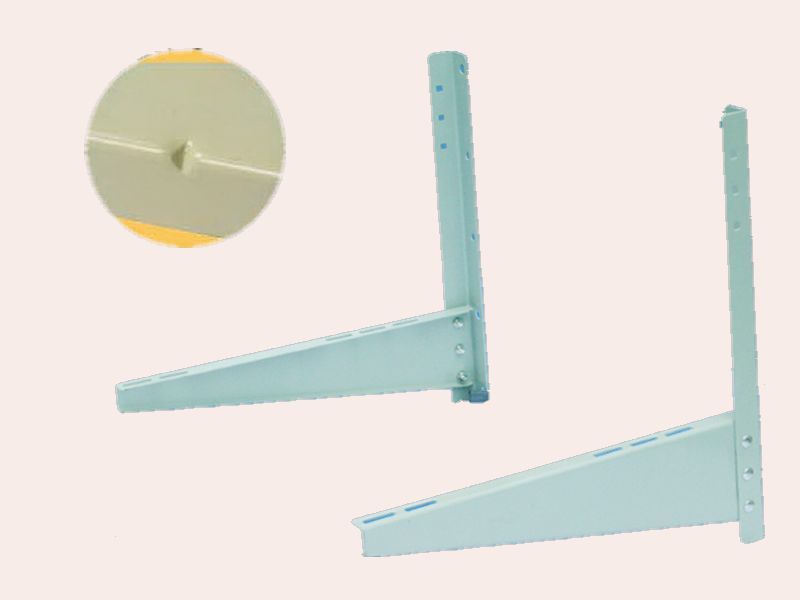

Model: W301B / W302B
Material: Hot rolling steel, weather-proof powder coated.
Special strengthen structure. All screws are galvanized.
|
Model
|
Size (mm)
|
Max loading
capacity (KG)
|
For ACR
|
PCS / 20’GP
container,
no pallet
|
|
L
|
H
|
|
W301B
|
450
|
380
|
80 + 80
|
7000-18000BTU (1-2HP)
|
8500
|
|
W302B
|
550
|
450
|
110 + 110
|
18000-24000BTU (2-3HP)
|
5200
|

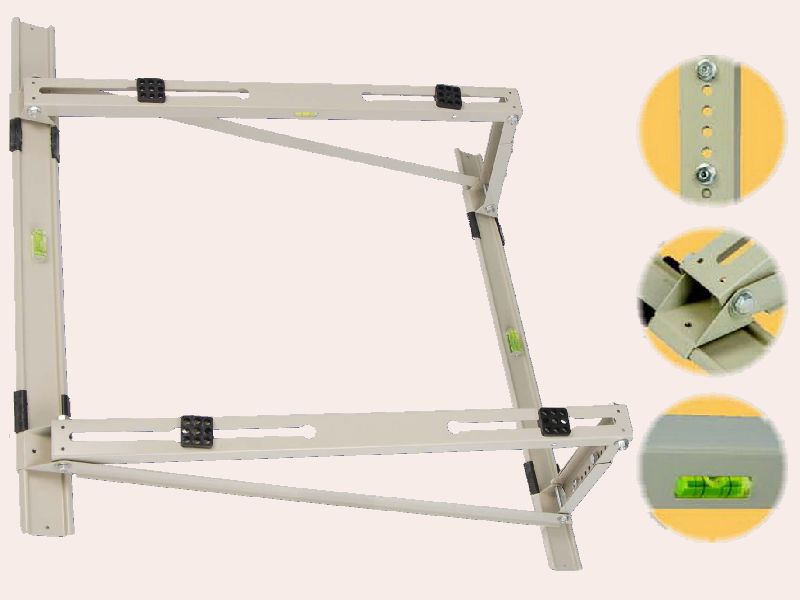

special flexible adjustment structure to fit the roof well
Model: WWB-01, roof bracket Model: WWG-01, roof bracket
Material: Cold-rolled steel, supplied stainless screws Material: Cold-rolled steel, supplied galvanized screws
For level installing, it allows swivel arms to 3-45° or 0. Weather-proof powder coated
|
Model
|
Size (mm)
|
Max loading
capacity (KG)
|
For ACR
|
PCS / 20’GP
container,
no pallet
|
|
L
|
W
|
H
|
|
WWB-01
|
800
|
560
|
560
|
150
|
7000-24000BTU
(1-3HP)
|
4000
|
|
WWG-01
|
800
|
560
|
560
|
150
|
4000
|
|
