Position：Home > Products > MOUNTING BRACKET

Others

Description

Can design and produce according to customer´s requirements, drawing or sample. OEM, ODM.

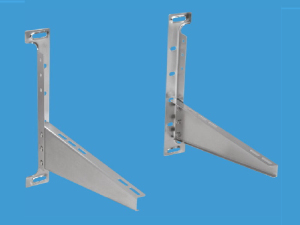

Model: W201                                                            Model: W201J
Material: Stainless steel                                            Material: Stainless steel
Size: 74(L)X46(W)X48(H) CM                                      Size: 46(W)X48(H) CM
MAX. loading: 180KGS                                              MAX. loading: 180KGS
For 1-2HP (7000-18000BTU) ACR                               For 1-2HP (7000-18000BTU) ACR

Model: W202                                                            Model: W202J
Material: Stainless steel                                            Material: Stainless steel
Size: 95(L)X52(W)X48(H) CM                                      Size: 52(W)X48(H) CM
MAX. loading: 250KGS                                              MAX. loading: 250KGS
For 2-3HP (18000-24000BTU) ACR                             For 2-3HP (18000-24000BTU) ACR

Model: W203                                                            Model: W204
Material: Stainless steel                                            Material: Stainless steel
Size: 120(L)X58(W)X67(H) CM                                    Size: 74(L)X43(W)X43(H) CM
MAX. loading: 300KGS                                              MAX. loading: 180KGS
For 3-5HP (24000-45000BTU) ACR                             For 1-2HP (7000-18000BTU) ACR

Model: W205, ground bracket                                    Model: W205J, ground bracket
Material: Stainless steel                                            Material: Stainless steel
Size: 74(L)X39(W)X15(H) CM                                     Size: 39(W)X15(H) CM
MAX. loading: 180KGS                                              MAX. loading: 180KGS
For 1-2HP (7000-18000BTU) ACR                               For 1-2HP (7000-18000BTU) ACR

Model: W206, ground bracket                                    Model: W206J, ground bracket
Material: Stainless steel                                            Material: Stainless steel
Size: 95(L)X45(W)X15(H) CM                               Size: 45(W)X15(H) CM
MAX. loading: 300KGS                                              MAX. loading: 300KGS
For 3-5HP (24000-45000BTU) ACR                             For 3-5HP (24000-45000BTU) ACR

Model: W207                                              Model: W207J
Material: Stainless steel                                            Material: Stainless steel
Size: 52(W)X70(H) CM                                 Size: 56(W)X80(H) CM
MAX. loading: 250KGS                                              MAX. loading: 300KGS
For 2-3HP (18000-24000BTU) ACR                             For 3-5HP (24000-45000BTU) ACR

Model: W101                                              Model: W105
Material: Armor plate                                               Material: Armor plate
Size: 74(L)X46(W)X46(H) CM                            Size: 115(L)X54(W)X54(H) CM
MAX. loading: 180KGS                                              MAX. loading: 250KGS
For 1-2HP (7000-18000BTU) ACR                               For 2-3HP (18000-24000BTU) ACR

Model: W107
Material: Armor plate
Size: 128(L)X60(W)X88(H) CM
MAX. loading: 300KGS
For 3-5HP (24000-45000BTU) ACR
